2013/06/19

[iOS] 縮放手勢 - UIPinchGestureRecognizer

我是UIPinchGestureRecognizer,我幫您辨識使用者縮放的手勢











第1步:建立一個名為"UIPinchGestureRecognizer"的"Single View Application"專案


第2步:拖拉一個UIPinchGestureRecognizer,以便辨識使用者縮放的事件。



第3步:處理UIPinchGestureRecognizer旋轉後產生的事件,在此以UIAlertView簡單顯示使用者進行旋轉動作的訊息。

  • 3.1 對UIPinchGestureRecognizer按鈕按右鍵打開選單,找到代表按鈕被按下的"selector"事件,並拖拉右方圓點至ViewController類別的定義中(.h)。



  • 3.2 於"Name"欄位中輸入"pinch",並按下"Connect"。


  • 3.3 此時會產生一個名為"pinch:"方法,其已與Interface Builder連結。


  • 3.4 打開"ViewController.m"檔案,並找到pinch:方法,透過UIAlertView顯示"抓到縮放事件了!"的字樣


- (IBAction)pinch:(id)sender { UIAlertView *alert = [[UIAlertView alloc] initWithTitle:@"提示" message:@"抓到縮放訊息了!" delegate:nil cancelButtonTitle:@"關閉" otherButtonTitles:nil, nil]; [alert show]; }



第4步:為底層的View加上的手勢辨識能力。對View按右鍵,找到"gestureRecognizers",按住拖拉至UIPinchGestureRecognizer上。

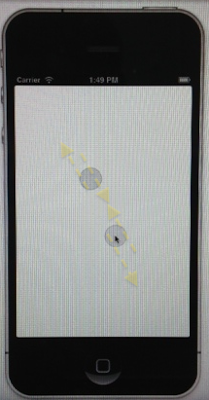

第5步:執行,先按住鍵盤上"Option",以產生出2指點選畫面的模式,之後按下左鍵後縮放,以觸發長按事件






官方手勢參考資料 Link


檔案連結:UIPinchGestureRecognizer.zip
